Prerequisites of the Spludlow Framework

Video: Spludlow Framework - Windows 10 Prerequisites

Video: Spludlow Framework - Windows Server 2016 Prerequisites

Video: Update .net Version


Introduction. 1

Other Software Dependencies. 1

Enabling Windows Features. 1

Enabling Windows Features (Windows 10). 1

Enabling Windows Server Features and Roles. 1

Configure IIS – Enable HTTPS. 1

Create SSL Certificate for HTTPS. 1

Enable HTTPS Binding. 1

IIS Basic .net Test. 1

Ensure running the correct version of .net. 1

Database Availability (First Host Only). 1

MSMQ Familiarity Check. 1



You should be logged into Windows using an account that belongs to the local group Administrators. If you want to use setup for creating users in active directory (windows domain), you need to be a member of Domain Admins.

Other Software Dependencies

The following software needs to be installed:

·         7-Zip

Enabling Windows Features

Now it’s time to enable all the OS Features the framework requires:

·         IIS

·         .net WCF HTTP Activation

·         .net ASP.NET

·         MSMQ

Enabling Windows Features (Windows 10)

Control Panel -> Programs and Features -> Turn Windows Features on or off -> Tick the following 3 items in this order:

  1. Tick “Internet Information Services” top level.
  2. Open up “.net Framework 4.6 Advanced Services”, open up “WCF Services”, tick “HTTP Activation”.
  3. Tick “Microsoft Message Queue (MSMQ) Server” top level. Nothing below it is required.

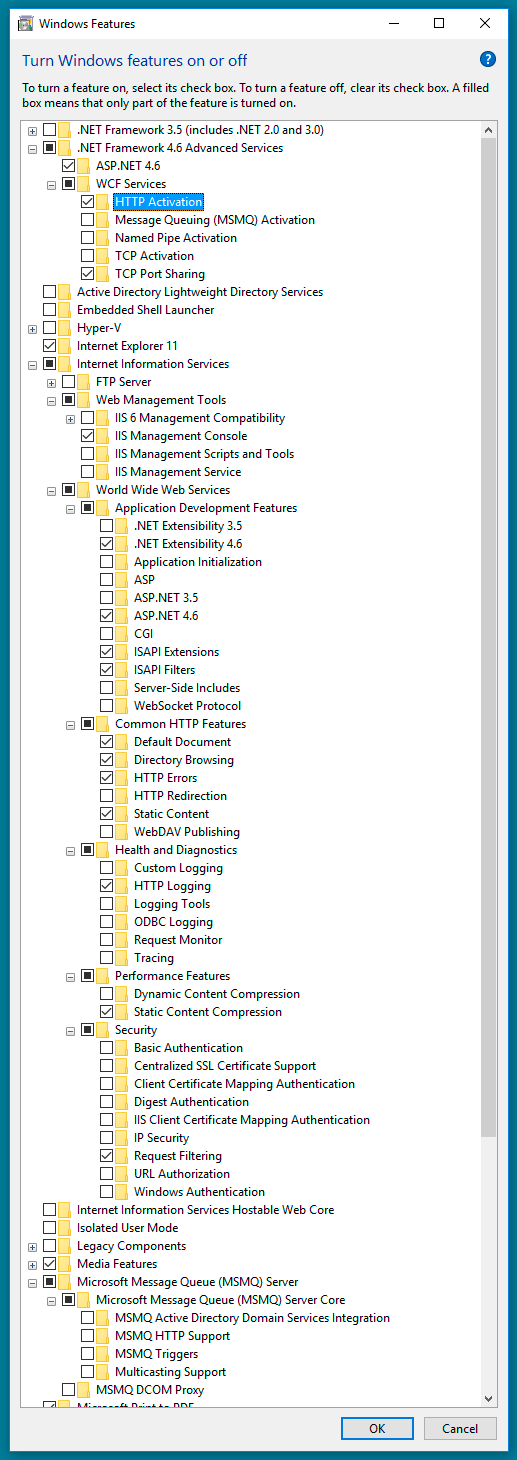

If you got this right your settings should match those in the screen shot, if it looks wrong hit cancel and try it again. Note that step 2 “HTTP Activation” automatically ticks everything else required to make .net work with IIS.

You may want to enable some other authentication methods if you use them, for example; IIS->Security->Windows Authentication if you want a company Intranet.

Forms authentication is a feature of ASP.NET not IIS so you don’t need to enable it here.



Enabling Windows Server Features and Roles

Install Server pretty much the same way as Windows 10, described above. Make sure you choose “Desktop Experience” if you want to use a desktop with Windows.

The main difference between setting up Windows and Windows Server is the way you switch built in operating system features on and off, for example the web server, things that are supplied with the operating system but you have to enable them. On Windows you click “Windows Features” within Control Panel -> Programs and Features, you get a tree with everything available in it and you can tick away. On Windows Server they have top level “Roles” like web server or domain controller and then “Features” are the level below options, for example enable .net within the web server. Anyway don’t get too annoyed with it they are both doing the same thing just organized differently.

Within Server manager under “(2) “Add roles and features” start the Roles and features wizard. Perform the following steps:

  • Roles: “Tick Web Server (IIS)” only then click next.
  • Features: open up “.net Framework 4.6 Advanced Services”, open up “WCF Services”, tick “HTTP Activation”. This will tick all the other .net stuff you need.
  • Features: click “Message Queuing” only “Message Queueing Server” is required. Click next.
  • Get to features for the Role IIS review everything should all be set from previous step. Add and additional security types.


Configure IIS – Enable HTTPS

IIS is configured using IIS Manager; go to Control Panel\All Control Panel Items\Administrative Tools\Internet Information Services (IIS) Manager. If IIS manager is not there, then the Windows Feature “IIS Management Console” is not selected. Pin it to your taskbar you will be using it.

Create SSL Certificate for HTTPS

Within IIS Manager select the local server at the top level in the left hand navigation panel.

The icons displayed on the main panel should contain “Server Certificates” under the IIS section, double click it. You should be looking at an empty list of server certificates.

Click the link on the right “Create Self-Signed Certificate…” a wizard appears. Name it “SpludlowCert” with a type of “Personal” and click OK.

You have now created a SSL certificate that IIS can use for HTTPS.

Enable HTTPS Binding

Within IIS Manager expand the “Sites” in the left hand panel and select “Default Web Site”.

Click the link top right “Bindings…” a list of current bindings is shown containing the default 80.

Click “Add…” change type to HTTPS change the SSL certificate “SpludlowCert” created previously, you can leave everything else blank.

After clicking OK, the binding 443 should appear below the standard port 80 binding.

IIS Basic .net Test

This is a quick and easy way check that IIS is probably working correctly and integrating with .net.

Try browsing to the following locations (note that “fred” in these tests is not supposed to exist):

http://localhost/                              You should see the default IIS page, currently it’s blue with hello in different languages.

http://localhost/fred.aspx           If you don’t get “Server Error in '/' Application.” in red then ASP.NET is not configured correctly.

http://localhost/fred.svc              If you don’t get “Server Error in '/' Application.” in red then HTTP activation is not configured correctly

If any of these tests fail, then IIS is not configured correctly something must have been missed when turning on Windows Features.

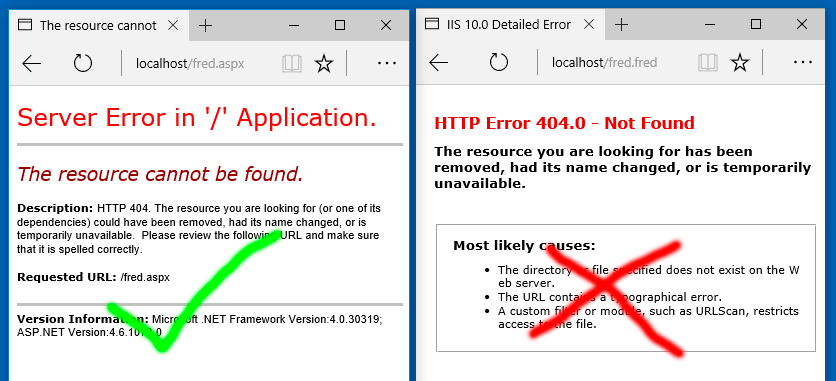

The test basically checks that the extension mapping for “.aspx” and “.svc” within IIS. Make sure you interpret the error page correctly as in this screen shot:



Ensure running the correct version of .net

The version of .net running on the host must be at least that of what the binaries where compiled for.

“ASoft .NET Version Detector”


Database Availability (First Host Only)

The first host (Master) must have access to a database, either local or remote. If you don’t please look at “Installing a database”.

The installer will require an initial connection string to setup the database. This connection’s database account should have the server role “SysAdmin” (on MS SQL) during setup so it can create the database. If you are running setup with the same account you installed the database, then this should already be the case.

If the database is SQL Server and runs local with integrated security used, then the default connection strings will work.

MSMQ Familiarity Check

Go to Control Panel\All Control Panel Items\Administrative Tools\Computer Management pin this to your taskbar.

Within Computer Management under “Services and Applications” you have “Message Queuing”, you will be using private queues, here you can manually add, remove, and configure permissions on queues as well as managing the messages on the queues.

If “Message Queuing” is not present, then it isn’t selected in Windows Features.
